This project is based on the INET wireless tutorial (INET Framework n.d.b). To install the INET framework (INET Framework n.d.a) the following steps were taken:
pip install opp_env
opp_env install --init\
-w inet-workspace inet-4.5.4 omnetpp-6.1.0The INET framework was installed using the opp_env tool (OMNeT++ n.d.b), which simplifies the installation process by managing dependencies and environment variables. The INET framework version 4.5.4 and OMNeT++ version 6.1.0 were installed in the inet-workspace/ directory.
To run the OMNeT++ IDE (OMNeT++ n.d.a), the following commands were executed:
cd inet-workspace
opp_env shell
omnetppThe simulation was run using the IDE, which provides a graphical interface for configuring and running simulations. The wireless tutorial was selected and the simulation started (tutorials/wireless/omnetpp.ini).
Each of the following steps corresponds to a specific configuration in the tutorial. The results and analysis for each configuration are presented in detail.
1 Two hosts communicating wirelessly
1.1 Simulate and measure the transmission rate.
After each packet transmitted, the following output is generated:
UDPData-1 (8.504 ms 1063 B)The output shows that the packet UDPData-1 was transmitted after 8.504 ms with a size of 1063 bytes.
1.2 Is the inter-arrival time for the packets memoryless? Explain your answer.
One line of the omnetpp.ini configuration file is as follows:
*.hostA.app[0].sendInterval =\
exponential(12ms)From the configuration it is clear that the inter-arrival times are memoryless because the sendInterval is explicitly defined as exponential(12ms). This is a key property of exponential distributions, which are memoryless.
Another approach is to analyze the output of the simulation:
Event #17
Reception ended: successfully
(8.504 ms 1063 B)
Event #6122
Reception ended: successfully
(8.504 ms 1063 B)Even after many events, the packet arrival time is still constant at 8.504 ms, which is a characteristic of memoryless processes.
1.3 Compute the total number of packets transmitted during the simulation time. Explain why the transmission rate was around 660 kbps.
The simulation stops after 20 seconds with the following output:
Simulation time limit reached
-- at t=20s, event #20746
Transmission count = 1596
WirelessA.hostB.app[0]:
received 1596 packetsA total of 1596 packets were transmitted during the simulation time.
totalLengthField = 1028The total length of a packet is 1028 bytes.
The transmission rate is calculated as follows:
\[ \begin{aligned} \text{Transmission Rate} &= \frac{\text{totalLengthField} \times \text{Transmission count}}{\text{Simulation time}} \\ &= \frac{1028 \text{bytes} \times 1596}{20 \text{s}} = 82034.4 \text{bytes/s} \\ &= 82034.4 \text{bytes/s} \times 8 \text{bits/byte} \\ &= 656275.2 \text{bits/s} \\ &= 656.2752 \text{kbps} \end{aligned} \tag{1}\]
Equation Equation 1 shows that the transmission rate is about 656 kbps, which is close to the expected value of 660 kbps.
1.4 Reproduce the simulation and confirm that the results remain consistent.
All simulation runs give the same result:
Simulation time limit reached
-- at t=20s, event #20746
Transmission count = 1596
Signal send count = 1596
Reception computation count = 1596
WirelessA.hostB.app[0]:
received 1596 packetsThe transmission count and the packets received by hostB are always 1596 packets, confirming the consistency of the results. The last event number #20746 is also the same for all runs, indicating that the simulation is deterministic.
1.5 Modify the random number generator seed in omnetpp.ini. How does changing the seed impact the simulation results?
To modify the seed of the random number generator, add the following line to omnetpp.ini:
seed-set = 1337After changing the seed, the simulation results are as follows:
Simulation time limit reached --
at t=20s, event #21022
Transmission count = 1617
Signal send count = 1617
Reception computation count = 1617
WirelessA.hostB.app[0]:
received 1617 packetsThe transmission count as well as the packets received by hostB are now 1617 packets, which is different from the previous result. This shows that changing the seed affects the simulation results. In this case, the number of transmitted packets increased by 21.
From here on, the seed is set to 1337 for all simulations to allow reproducibility.
1.6 List all parameters of the MAC protocol used in AckingWirelessInterface with references to the source code.
The parameters in the omnetpp.ini file are as follows:
*.host*.wlan[0].\
typename = "AckingWirelessInterface"
*.host*.wlan[0].\
mac.useAck = false
*.host*.wlan[0].\
mac.fullDuplex = false
*.host*.wlan[0].\
radio.transmitter.communicationRange =\
500m
*.host*.wlan[0].\
radio.receiver.ignoreInterference = true
*.host*.wlan[0].\
mac.headerLength = 23Band in the file AckingWirelessInterface.ned (l. 30-36):
parameters:
string interfaceTableModule;
string energySourceModule =\
default("");
double bitrate @unit(bps);
*.interfaceTableModule =\
default(
absPath(this.interfaceTableModule)
);
*.energySourceModule =\
default(
absPath(this.energySourceModule)
);
**.bitrate = this.bitrate;1.7 Explain the throughput:vector statistic in the analysis file by citing its definition and implementation in the source code.
Information can be found in /applications/udpapp/UdpBasicApp.ned (l. 55-57):
@signal[packetReceived]
(type=inet::Packet);
@statistic[packetReceived]
(title="packets received";
source=packetReceived;
record=count,
"sum(packetBytes)",
"vector(packetBytes)"
;
interpolationmode=none
);
@statistic[throughput]
(title="throughput";
unit=bps;
source="throughput(packetReceived)";
record=vector
);The packetReceived signal, of type inet::Packet, is emitted whenever a packet is received by the module and serves as the basis for related metrics. The packetReceived statistic uses this signal to track three key metrics: the total number of packets received (count), the cumulative size of packets received (sum(packetBytes)) and the individual sizes of packets as a time-series vector (vector(packetBytes)), with no interpolation applied to the discrete events. The throughput statistic, also derived from the packetReceived signal, calculates and records the throughput (rate of data received) in bits per second (bps) as a time series vector. This setup allows detailed tracking and analysis of packet reception and throughput performance over time during the simulation.
The analysis file (Wireless.vec) contains the following lines related to the throughput:vector statistic:
vector 82 WirelessA.hostB.app[0]
throughput:vector ETV
attr source throughput(packetReceived)
attr title throughputThese lines show that the throughput:vector statistic is associated with the packetReceived signal from the hostB application module, providing insight into the throughput performance of the network.
2 Setting up some animations
2.1 Visualize the radio transmission range.
Figure 1 visualizes the radio transmission range, showing the communication radius around hostA, represented by the blue circle. The range is set to 500m as specified in the omnetpp.ini configuration file:
*.host*.wlan[0].radio.transmitter.\
communicationRange = 500m2.2 Change the communication range so that host B is no longer reachable from host A. Visualize the new range.
Figure 2 illustrates the reduced communication range, where the blue circle around hostA no longer reaches hostB. This change was achieved by modifying the communication range parameter in the omnetpp.ini file:
*.host*.wlan[0].radio.transmitter.\
communicationRange = 250m2.3 Provide simulation results for the transmission rate and explain them.
To provide results, the range is set back to 500m in the omnetpp.ini file. The simulation is run and the following output is generated:
Simulation time limit reached
-- at t=20s, event #21022
Radio signal
arrival computation count = 1617
Transmission count = 1617
Signal send count = 1617
Reception computation count = 1617
WirelessA.hostB.app[0]:
received 1617 packetsThe transmission count is 1617 packets, which is the same as the previous result (with seed-set = 1337). The animation only visualizes the network topology and does not interfere with the simulation logic.
Leaving the communication range at 250m would result in hostB being unreachable from hostA:
WirelessA.hostB.app[0]: received 0 packetsThe output confirms that no packets were received from hostB, indicating that the reduced communication range successfully prevented communication between the two hosts.
3 Adding more nodes and decreasing the communication range
3.1 Identify the type of wireless interfaces for the new hosts. Explain your answer with references to the source code.
The three new hosts (hostR1, hostR2 and hostR3) are defined in the WirelessB.ned network configuration:
network WirelessB extends WirelessA
{
submodules:
hostR1: <default("WirelessHost")>\
like INetworkNode {
@display("p=250,300");
}
hostR2: <default("WirelessHost")>\
like INetworkNode {
@display("p=150,450");
}
hostR3: <default("WirelessHost")>\
like INetworkNode {
@display("p=350,450");
}
}The WirelessHost is defined in /node/inet/WirelessHost.ned:
module WirelessHost extends StandardHost
{
parameters:
numWlanInterfaces = default(1);
@display("i=device/wifilaptop");
}“Models a host with (default) one wireless (802.11) card in infrastructure mode” (l. 11).
The wireless interfaces for these hosts are specified in the omnetpp.ini file:
*.host*.wlan[0].typename =\
"AckingWirelessInterface"Again, the AckingWirelessInterface type is used for the wireless interfaces of all hosts in the network.
4 Setting up static routing
4.1 Use the runtime GUI to capture a screenshot showing the IP addresses of all hosts in the network.
Set the following option in the omnetpp.ini file to enable this debugging information:
INFO: hostA [...]
{inet_addr:10.0.0.1/24[...]}
INFO: hostB [...]
{inet_addr:10.0.0.2/24[...]}
INFO: hostR1 [...]
{inet_addr:10.0.0.3/24[...]}
INFO: hostR2 [...]
{inet_addr:10.0.0.4/24[...]}
INFO: hostR3 [...]
{inet_addr:10.0.0.5/24[...]}Alternatively, the routing table can be viewed in the runtime GUI by selecting the hostA module and clicking on Routing Table in the ipv4 section:

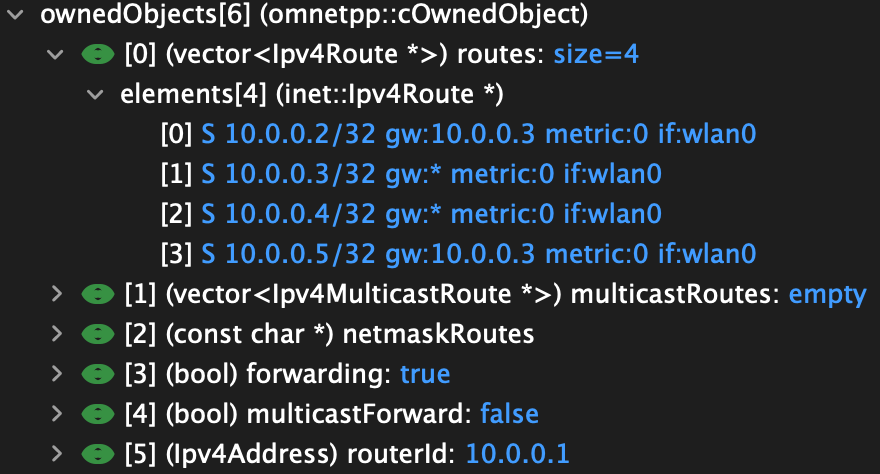

Figure 3 displays the routing table for hostA, showing the IP addresses of all hosts in the network.
5 Taking interference into account
5.1 Enable event log recording in the runtime GUI.

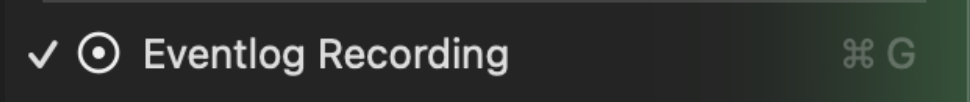

Figure 4 shows that the “Eventlog Recording” option is enabled in the runtime GUI.
5.2 Open the .elog file with a text editor and explain its contents.
An excerpt from the .elog file is as follows:
CM id 243061 tid 243061 eid 243061
etid 243061 c
omnetpp::cMessage n UDPData-0 pe -1
BS id 243061 tid 243061 eid 243061
etid 243061 c
inet::Packet n
UDPData-0 l 8000 m 54 pe 4
SH sm 54 sg 3
CMB sm 54 tm 55 m arrived
ES id 242948 tid 242948 eid 242948
etid 242948 c
inet::ClockEvent n
sendTimer k 2 sm 54 st
0.007276585767 am 54 at
0.026732847636 pe 14
CMB sm 51 tm 25 m packetReceivedFromUpper
CME
CMB sm 51 tm 27 m packetReceivedFromUpper
CME
CMB sm 51 tm 30 m packetReceivedFromUpper
CMB sm 61 tm 4 m transmitPacket
BS id 242927 tid 242927 eid 242927
etid 242927 c
omnetpp::cMessage n
removeNonInterferingTransmissions
sm 4 st 0.002868038578
am 4 at 0.021373372834
pe 9
CMB sm 182 tm 30 m packetReceivedFromLower
CME
MDC id 74 d
"t=processed 1 pk (1008 B);
p=550,300;b=600,5,,,,1"
CMB sm 75 tm 69 m
findBestMatchingRoute(10.0.0.2)
CME
CMB sm 75 tm 76 m
resolveL3Address
CMEIn general, the file captures the detailed sequence of events and interactions between modules during the simulation. Key events include:
- Message Creation: A packet (
UDPData-0) is created as an instance ofinet::Packetwith a size of8000bits and processed by submodules (CMandBSevents). - Signal Handling and Arrival: Signals are processed by submodules (
SHevents) and packets arrive at target submodules (CMBevents). - Event Scheduling: Timers and network events (
ES) are scheduled for execution, such as thesendTimerfor managing transmissions. - Packet Processing and Transmission: Packets are received from upper layers, processed and transmitted at various stages (
CMBwithpacketReceivedFromUpperandtransmitPacket). - Address Resolution: Submodules resolve layer 3 addresses and identify routes (
CMBfindBestMatchingRoute). - Visualization Updates: Visualization logs (
MDC) show processed packets and their visual representation on the simulation canvas.
This information provides a comprehensive view of packet flow and module interactions that can be used to analyze system behavior and performance.
5.3 Analyze the event log using the sequence chart and event log table tools. Filter events for hostA+udp, hostB+udp and hostR1+ip.

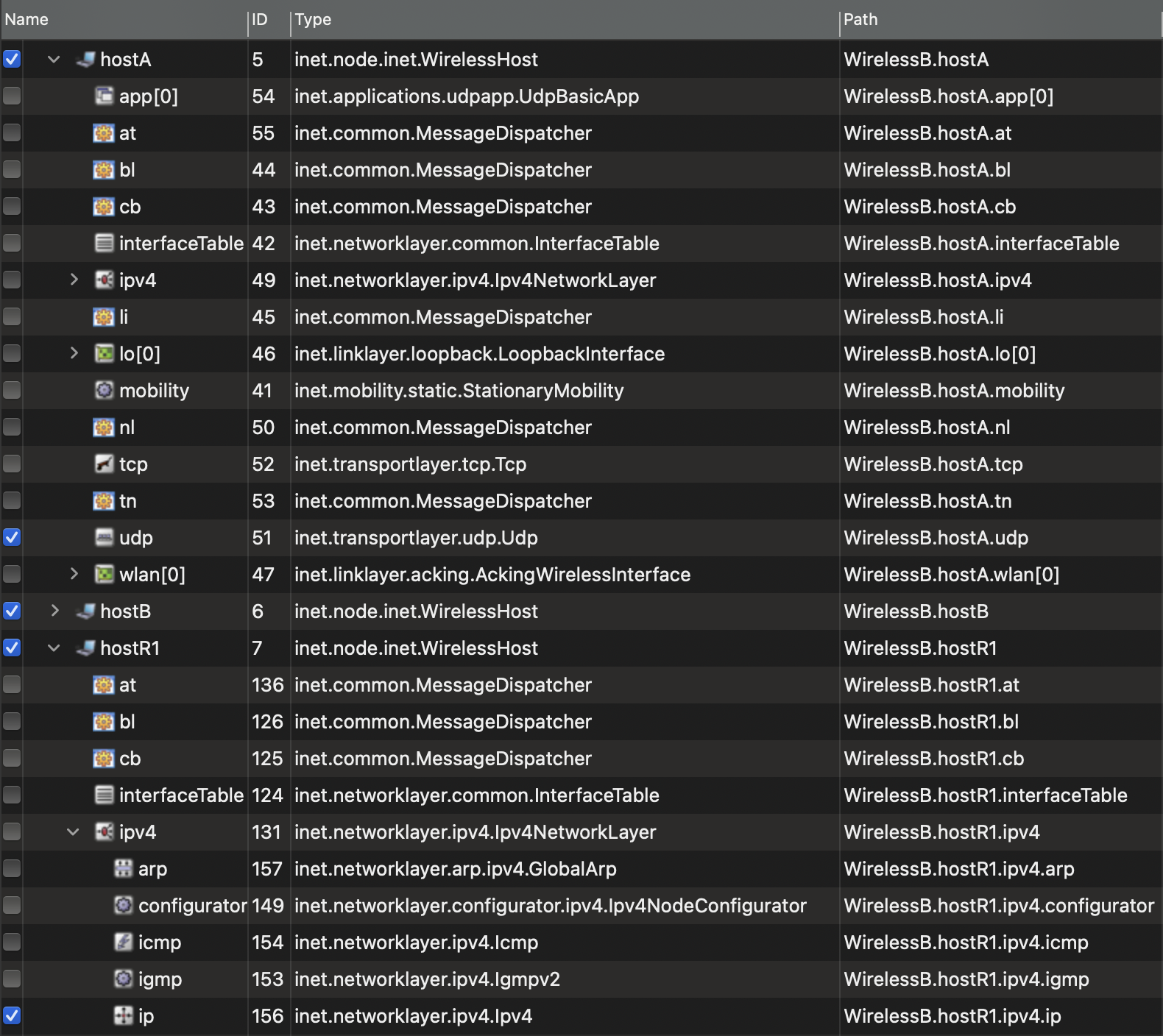

Figure 5 shows the event log filtering options for hostA+udp, hostB+udp and hostR1+ip in the runtime GUI.
5.4 Take screenshots and comment on both a complete and an incomplete transmission sequence chart.

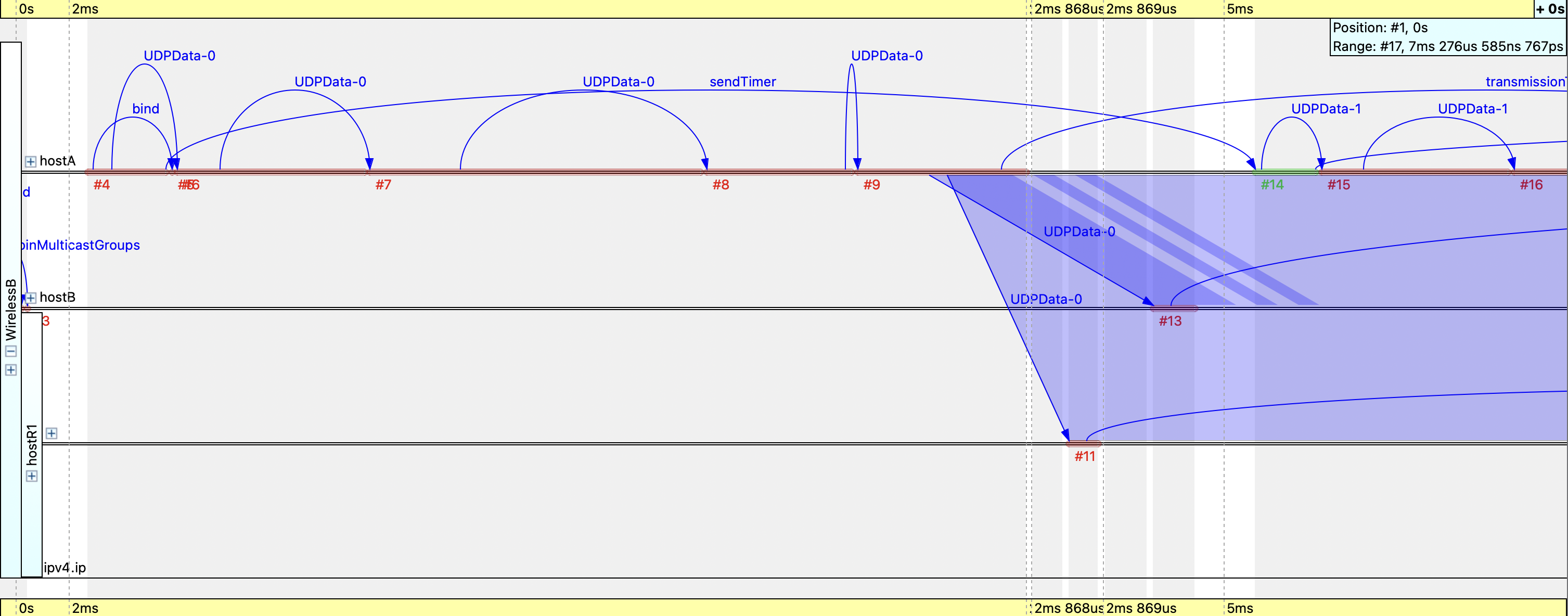

Figure 6 shows the first events of the simulation. At Event #4 it starts with the bind operation for UDPData-0 in hostA. This step represents the initialization of the UDP communication, including the creation of the packet and its preparation for transmission. At this point, the UDPData-0 message is scheduled for delivery, marking the start of its journey from hostA.
The illustration is further simplified by using the Network Interface option in the Preset Configuration:

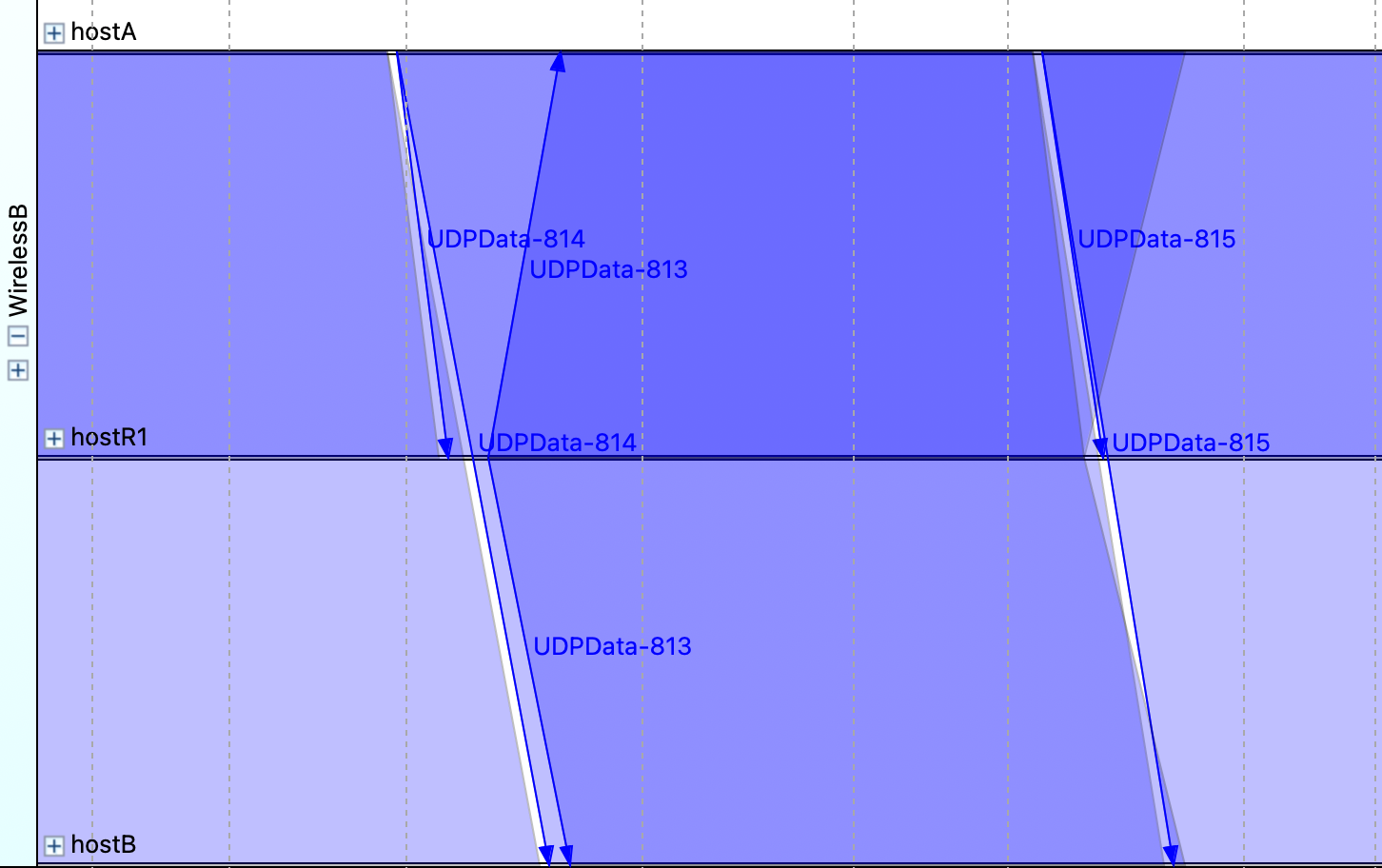

As shown in Figure 7, the sequence chart shows the status of three packets (UDPData-813, UDPData-814 and UDPData-815):
UDPData-813: Successfully reacheshostBafter being forwarded byhostR1. The arcs indicate a complete flow fromhostAtohostBviahostR1.UDPData-814: Is transmitted fromhostAtohostR1but does not reachhostB. The absence of arcs fromhostR1tohostBindicates that the packet was either dropped or lost.UDPData-815: Also fails to reachhostBafter being sent tohostR1. Similar toUDPData-814, the packet appears to have been dropped or interrupted before reaching its final destination.
This simplified view highlights the occurrence of packet loss or forwarding problems at hostR1, indicating the need for further analysis of routing or congestion effects on the network.
6 Using CSMA to better utilize the medium
6.1 1. Compare the number of packets received by host B in this configuration with the results from Configuration Step 5 (Section 5). Explain the difference.
Running the simulation with the CSMA configuration produces the following output:
WirelessB.hostB.app[0]:
received 1090 packetsIn Section 5 it was:
WirelessB.hostB.app[0]:
received 139 packetsThe number of packets received by hostB in this configuration is 1090, which is significantly higher than the 139 packets received in the previous configuration. This difference can be attributed to the use of CSMA in the current configuration, which allows for better utilization of the medium by coordinating access to the channel among multiple nodes. The CSMA protocol helps reduce collisions and interference, resulting in more successful packet transmissions and higher throughput compared to the previous configuration.
7 Turning on ACKs in CSMA
7.1 Measure the numRetry statistic for Configuration Steps 6 (Section 6) and 7.
The numRetry statistic is measured in the simulation output (Wireless06.sca):
scalar WirelessB.hostA.wlan[0].mac
numRetry 0
scalar WirelessB.hostB.wlan[0].mac
numRetry 0
scalar WirelessB.hostR1.wlan[0].mac
numRetry 0
scalar WirelessB.hostR2.wlan[0].mac
numRetry 0
scalar WirelessB.hostR3.wlan[0].mac
numRetry 0and (Wireless07.sca):
scalar WirelessB.hostA.wlan[0].mac
numRetry 67
scalar WirelessB.hostB.wlan[0].mac
numRetry 0
scalar WirelessB.hostR1.wlan[0].mac
numRetry 67
scalar WirelessB.hostR2.wlan[0].mac
numRetry 0
scalar WirelessB.hostR3.wlan[0].mac
numRetry 07.2 Cite the source code where the logic for numRetry is defined.
The logic for numRetry is implemented in inet/linklayer/csmaca/CsmaCaMac.cc:
numRetry = 0;
WATCH(numRetry);
void CsmaCaMac::finish()
{
recordScalar("numRetry", numRetry);
...
}
void CsmaCaMac::retryCurrentTransmission()
{
ASSERT(retryCounter < retryLimit);
retryCounter++;
numRetry++;
generateBackoffPeriod();
}At the start it is initialized with 0 and tracked using WATCH. In the finish() method, numRetry is recorded as a scalar statistic using recordScalar(). Each time a packet is not successfully transmitted and a retry is initiated, the retryCurrentTransmission() method increments numRetry.
7.3 Explain the differences in this metric between the two configurations.
The numRetry metric for Configuration Step 6 is 0 for all hosts because of the lack of ACKs. In Configuration Step 7, the numRetry statistic is 67 for hostA and hostR1, indicating the number of retransmissions due to failed packet delivery attempts. The increase in numRetry when ACKs are enabled is due to the acknowledgment mechanism requiring retries when packets are lost or ACKs are not received. While this increases the reliability of the network, it also results in higher retransmission counts, especially in scenarios with higher traffic or interference.
8 Configuring node movements
8.1 Plot the throughput vector at hostB and identify the time when the transmission stops.
The following plot is generated using the Line Chart with Matplotlib tool in the runtime GUI:

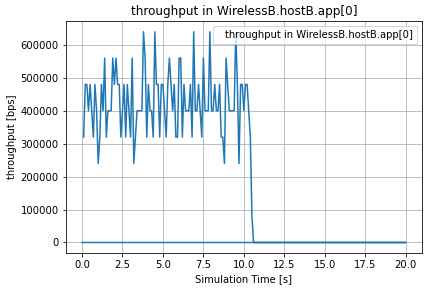

Figure 8 shows the throughput vector at hostB over time. Transmission stops at about t=10.5s, as indicated by the sharp drop in throughput to 0 bps. This corresponds to the moment in the simulation when hostR1 leaves the communication range of hostA, leading to the termination of packet transmission.

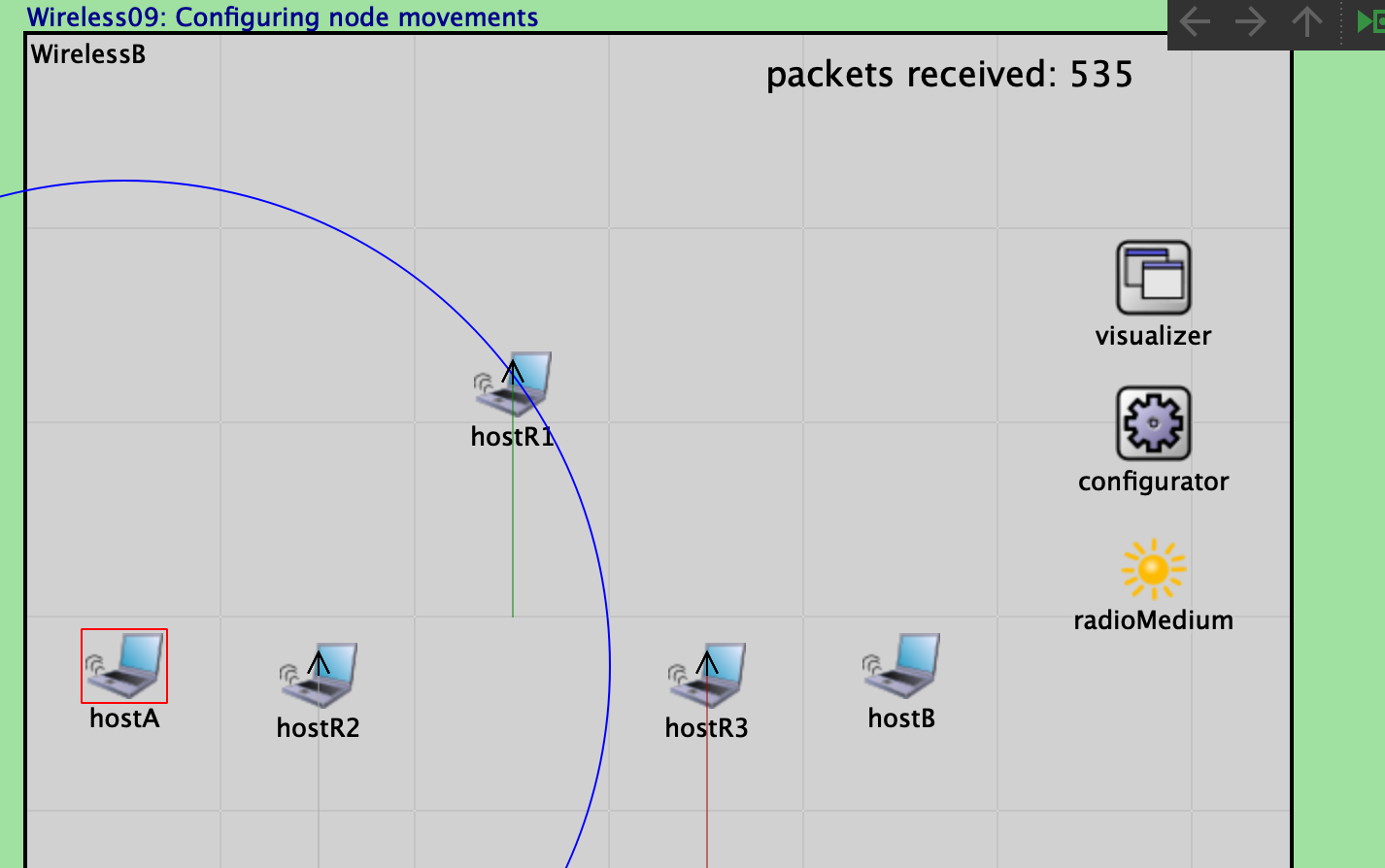

Figure 9 shows the simulation at t=10s, where the nodes have moved to new positions. Here, hostR1 is barely within the communication range of hostA, leading to the resulting reduction in throughput and eventual termination of transmissions.

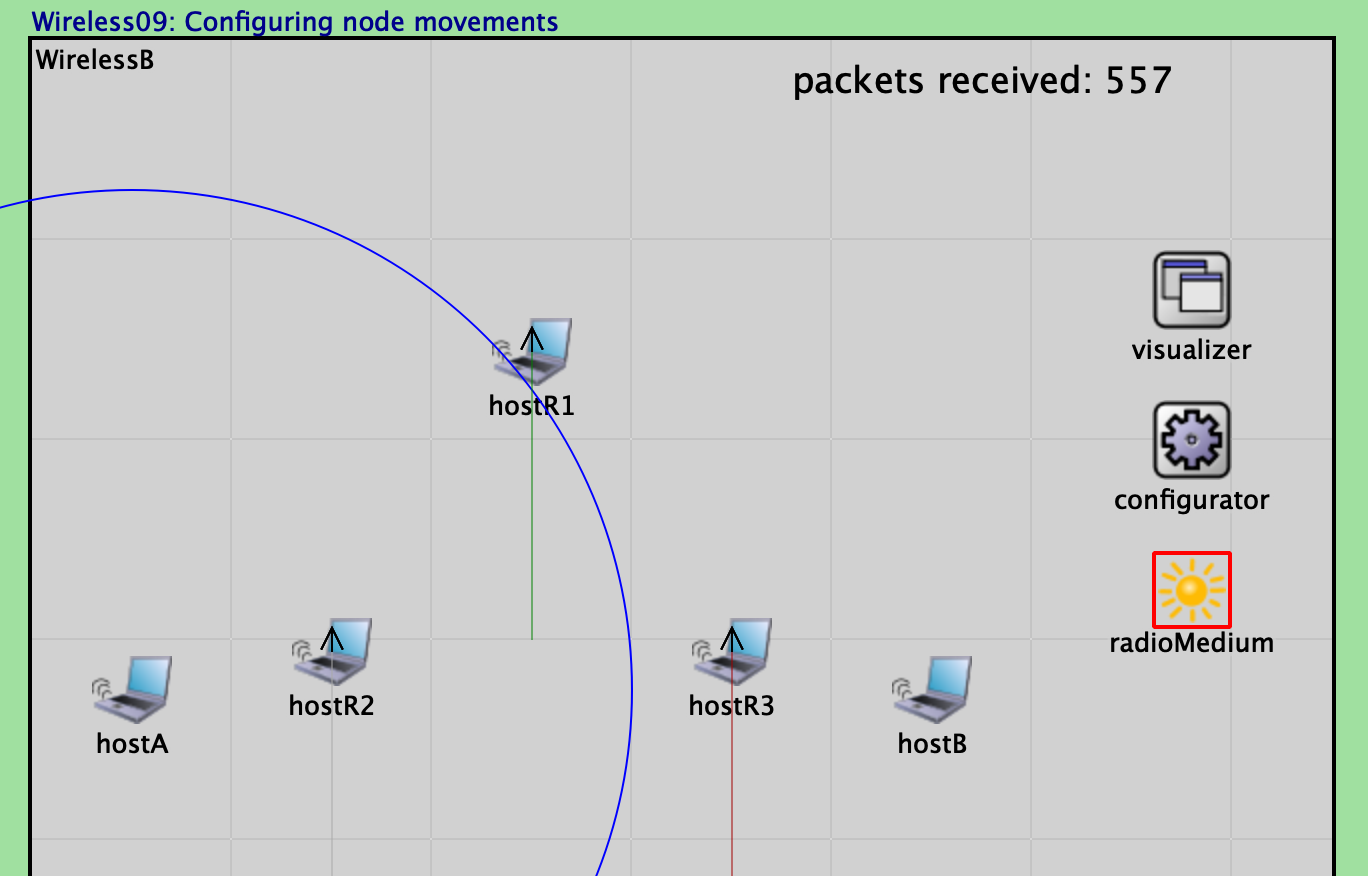

Figure 10 shows the simulation at t=12s, where hostR1 has moved further away from hostA, resulting in complete loss of communication and termination of packet transmission. A total of 557 packets were received by hostB before the transmission stopped.
9 Conclusion
The wireless network simulations performed in this project demonstrate the effectiveness of OMNeT++ and the INET framework in modeling complex network scenarios. Key findings include the importance of proper protocol configuration, such as enabling acknowledgment mechanisms in CSMA, to ensure reliability despite the increased retransmission overhead. Throughput measurements and event log analysis revealed the impact of communication range, interference and mobility on network performance. In addition, static and dynamic routing configurations were successfully implemented and visualized, providing a clear understanding of node interactions. Overall, the project highlights the versatility and utility of simulation tools for studying wireless network behavior and optimizing protocol design.
